Description

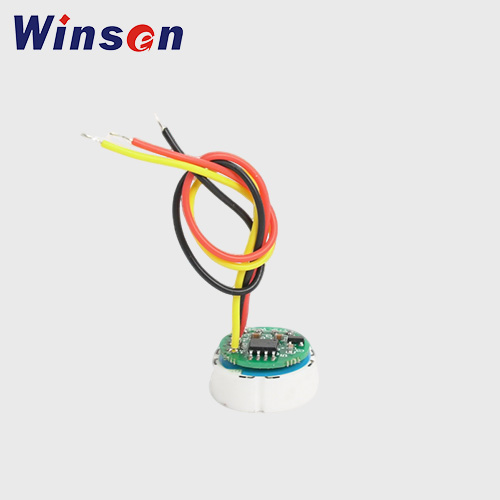

The WPBH01 ceramic pressure sensor module is a specialized device designed for accurate pressure measurement. Unlike a typical ceramic pressure transmitter, it lacks an outer shell, which contributes to its compact and high-integration design. The module is constructed using a refined ceramic seat ceramic piezo resistive pressure sensor, which forms the core of its functionality.
To ensure accurate and reliable measurements, the module employs a precision conditioning chip. This chip compensates for various factors such as sensor offset, sensitivity, and temperature drift. Through this compensation process, the WPBH01 maintains high precision and good consistency in its output, even under different operating conditions.
The ceramic sensitive film in the module has a high overload capacity, enabling it to withstand significant pressure surges without damage. Laser calibration for zero and full scale further enhances its measurement accuracy. The module also boasts excellent corrosion and wear resistance, making it suitable for use in harsh environments. Its resistance to impact and vibration ensures stable performance in dynamic applications.
With a wide operating temperature range from -20℃ to 125℃, the WPBH01 can function effectively in various environmental conditions. Its small size, measuring φ18.0×11.8 mm, makes it easy to package and integrate into different systems. Additionally, it is designed with environmental protection in mind, aligning with modern sustainability requirements.
- Process Control: In industrial processes, the WPBH01 accurately measures pressure to ensure smooth operation, product quality control, and process optimization. It can be used to monitor and control pressure in pipelines, reactors, and other process equipment.
- Environmental Control: For environmental monitoring systems, the sensor module can measure pressure in air quality monitoring devices, weather stations, or environmental chambers. It helps in detecting changes in pressure that may indicate environmental changes or anomalies.
- Hydraulic and Pneumatic Equipment: In hydraulic and pneumatic systems, such as those in heavy machinery, construction equipment, or manufacturing plants, the WPBH01 monitors the pressure of fluids to ensure proper operation and prevent equipment failure.
- Servo Valves and Transmission: In servo valve and transmission systems, the sensor module provides real-time pressure feedback, enabling precise control and adjustment of these systems for accurate and efficient operation.
- Chemical and Chemical Industry: In the chemical industry, where corrosive substances are often present, the WPBH01’s excellent corrosion resistance makes it suitable for measuring pressure in chemical reactors, storage tanks, and pipelines.
- Medical Instruments: In medical applications, such as blood pressure monitors, ventilators, or other medical devices that require precise pressure sensing, the WPBH01 offers high accuracy and reliability.
- High Overload Capacity: The ceramic sensitive film can handle high pressure overloads, ensuring the module’s durability and reliability in demanding applications.
- Precise Calibration: Laser calibration for zero and full scale ensures accurate pressure measurement, reducing errors and improving the overall performance of the module.
- Corrosion and Wear Resistance: Offers excellent resistance to corrosion and wear, making it suitable for use in harsh and corrosive environments.
- Impact and Vibration Resistance: Can withstand impact and vibration, maintaining stable performance in dynamic and rugged applications.
- High Precision and Stability: Achieves high precision in pressure measurement and maintains good stability over time, providing consistent and reliable data.
- Wide Temperature Range: Operates effectively within a wide temperature range, allowing it to be used in various environmental conditions.
- Compact and Easy to Package: Its small size makes it easy to integrate into different systems and packages, offering flexibility in installation and design.
- Environmental Protection: Designed with environmental considerations, it meets the requirements of sustainable development and reduces its environmental impact.
| Item |
Parameter |
Mark |
| Size |
φ18.0×11.8 mm |
|
| Range |
2bar—400bar |
customizable |
| Power Voltage |
5VDC |
customizable |
| Output |
Proportional voltage output、0.5～4.5V |
Standard signal output, customizable |
| Comprehensive accuracy |
0.5% 1% 2% 3% |
default 2% |
| Compensation temperature |
0～65℃ -10～85℃ |
Default 0-65℃ |
| Working temperature |
-20～125℃ |
|
| Response time |
＜1mS |
|
| Working current |
＜1.5mA |
|
Please note that product descriptions and specifications are subject to change without notice. For the most up-to-date information, please contact us before placing orders.
