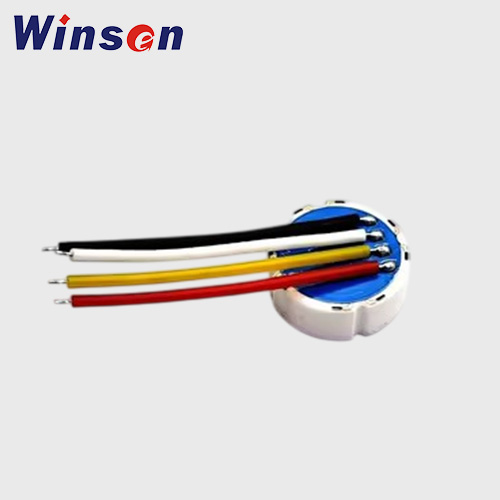

WPAH51 Ceramic Pressure Sensor
WPAH51 is a Ceramic Pressure Sensor designed for reliable OEM and industrial integration. It features Ceramic piezoresistive pressure sensing; range 2bar～400bar; output Millivolt bridge output.
- Description
- Additional information
- Reviews (0)
Description
The WPAH51 uses Ceramic piezoresistive pressure sensing for stable measurement and straightforward integration. It is suitable for OEM equipment and professional sensing applications where consistent pressure or environmental measurement is required.
Key Features
- High overload capability
- Laser calibration
- Corrosion and wear resistant ceramic sensing element
- Compact Φ18 × 6.35mm structure
Key Specifications
| Detection Principle | Ceramic piezoresistive pressure sensing |
|---|---|
| Measurement Range | 2bar～400bar |
| Output | Millivolt bridge output |
| Accuracy / Linearity | Typical non-linearity / hysteresis / repeatability: ±0.3%FS |
| Power Supply | 2～20V |
| Operating Temperature | -40～125℃ |
| Diaphragm / Sensing Material | Ceramic sensitive film |
Typical Applications
- Industrial pressure measurement
- Hydraulic and pneumatic systems
- Water systems
- OEM pressure instruments
Specifications may be updated without notice. Contact Winsen for the latest technical information and customization options before final design-in or ordering.
Additional information
| Detection range | 2bar～400bar |
|---|---|
| Output | Millivolt bridge output |
| Operating temperature | -40～125℃ |
| Accuracy | Typical non-linearity / hysteresis / repeatability: ±0.3%FS |
| Power supply | 2～20V |
