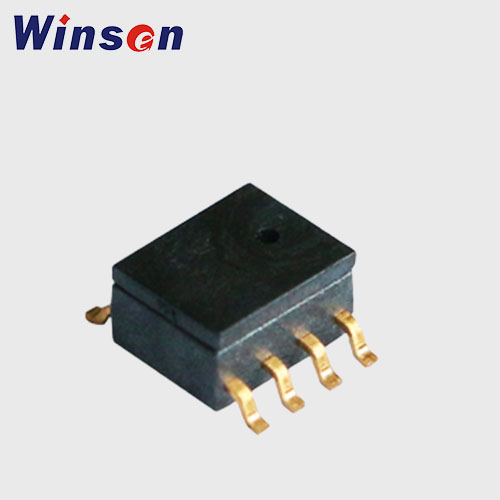

WPAS01 Plastic Package Pressure Sensor
WPAS01 is a Plastic Package Pressure Sensor designed for reliable OEM and industrial integration. It features MEMS piezoresistive pressure sensing; range -100kPa～1.7MPa; output Millivolt bridge output.
- Description
- Additional information
- Reviews (0)
Description
The WPAS01 uses MEMS piezoresistive pressure sensing for stable measurement and straightforward integration. It is suitable for OEM equipment and professional sensing applications where consistent pressure or environmental measurement is required.
Key Features
- Compact SOP8 package
- Low-cost MEMS pressure sensing
- Fast response
- Customizable pressure range
Key Specifications
| Detection Principle | MEMS piezoresistive pressure sensing |
|---|---|
| Measurement Range | -100kPa～1.7MPa |
| Output | Millivolt bridge output |
| Pressure Reference | Absolute Pressure |
| Response Time | ≤1ms |
| Power Supply | 5V excitation |
| Operating Temperature | -40～125℃ |
Typical Applications
- Consumer and industrial electronics
- Appliances
- Pressure instruments
- OEM modules
Specifications may be updated without notice. Contact Winsen for the latest technical information and customization options before final design-in or ordering.
Additional information
| Detection range | -100kPa～1.7MPa |
|---|---|
| Output | Millivolt bridge output |
| Pressure Reference | Absolute Pressure |
| Operating temperature | -40～125℃ |
| Power supply | 5V excitation |
