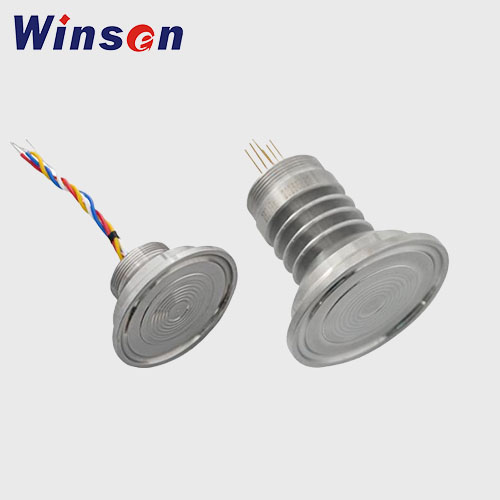

WPAK69 General Type Isolation-Film Pressure Sensor
WPAK69 is a General Type Isolation-Film Pressure Sensor designed for reliable OEM and industrial integration. It features Diffused silicon pressure sensing; range -100kPa～10MPa; output Millivolt bridge output.
- Description
- Additional information
- Reviews (0)
Description
The WPAK69 uses Diffused silicon pressure sensing for stable measurement and straightforward integration. It is suitable for OEM equipment and professional sensing applications where consistent pressure or environmental measurement is required.
Key Features
- Isolation-film pressure core
- 316L stainless-steel wetted structure
- Wide temperature compensation
- Fast millivolt bridge response
Key Specifications
| Detection Principle | Diffused silicon pressure sensing |
|---|---|
| Measurement Range | -100kPa～10MPa |
| Output | Millivolt bridge output |
| Pressure Reference | Gauge Pressure / Absolute Pressure / Sealed Gauge Pressure |
| Response Time | ≤1ms |
| Operating Temperature | -40～120℃ |
| Diaphragm / Sensing Material | SS316L |
Typical Applications
- OEM pressure transmitters
- Industrial instrumentation
- Water systems
- Hydraulic and pneumatic equipment
Specifications may be updated without notice. Contact Winsen for the latest technical information and customization options before final design-in or ordering.
Additional information
| Detection range | -100kPa～10MPa |
|---|---|
| Output | Millivolt bridge output |
| Pressure Reference | Gauge Pressure / Absolute Pressure / Sealed Gauge Pressure |
| Operating temperature | -40～120℃ |
