WPCK81 væskeniveautransmitter

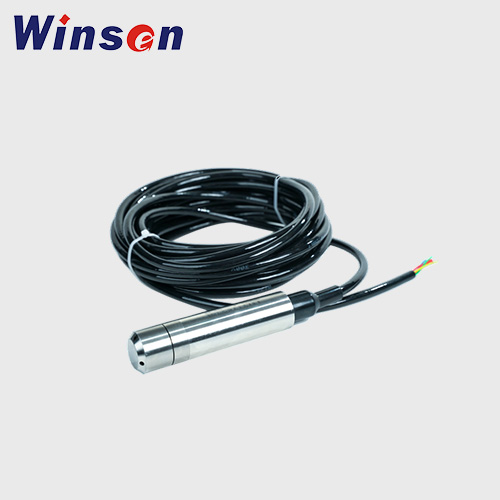

WPCK81 is a Liquid Level Transmitter designed for reliable OEM and industrial integration. It features Piezoresistive liquid-level pressure sensing; range 0～1m…5m…200mH₂O; output 4～20mA / RS485.
- Beskrivelse
- Yderligere oplysninger
- Anmeldelser (0)
Beskrivelse
De WPCK81 uses Piezoresistive liquid-level pressure sensing for stable measurement and straightforward integration. It is suitable for OEM equipment and professional sensing applications where consistent pressure or environmental measurement is required.
Nøglefunktioner
- Submersible liquid-level measurement
- Stainless-steel diaphragm
- Analog and RS485 output options
- Wide level measurement range
Nøglespecifikationer
| Detektionsprincip | Piezoresistive liquid-level pressure sensing |
|---|---|
| Måleområde | 0～1m…5m…200mH₂O |
| Produktion | 4~20mA / RS485 |
| Nøjagtighed / Linearitet | ±0.5%FS (>1m); ±1%FS (1m) |
| Responstid | ≤1ms |
| Driftstemperatur | -20～85℃ |
| Diaphragm / Sensing Material | SS316L |
Typiske applikationer
- Water tanks and reservoirs
- Wells
- Vandbehandling
- Industrial liquid-level monitoring
Specifikationer kan blive opdateret uden varsel. Kontakt Winsen for den seneste tekniske information og tilpasningsmuligheder inden endelig design-in eller bestilling.
Yderligere oplysninger
| Detektionsområde | 0～1m…5m…200mH₂O |
|---|---|
| Produktion | 4~20mA / RS485 |
| Driftstemperatur | -20～85℃ |
| Nøjagtighed | ±0.5%FS (>1m); ±1%FS (1m) |
